Chargers
List of available chargers for large battery packs
This is a list of chargers for larger packs suitable as on-board chargers for vehicle traction packs (for EVs, PHEVs).
This information does not constitute an endorsement of any of these companies and products.
While the information presented here is believed to be accurate, We take no responsibility for any errors.
Please send us comments, corrections and additions.
Comparison of chargers.

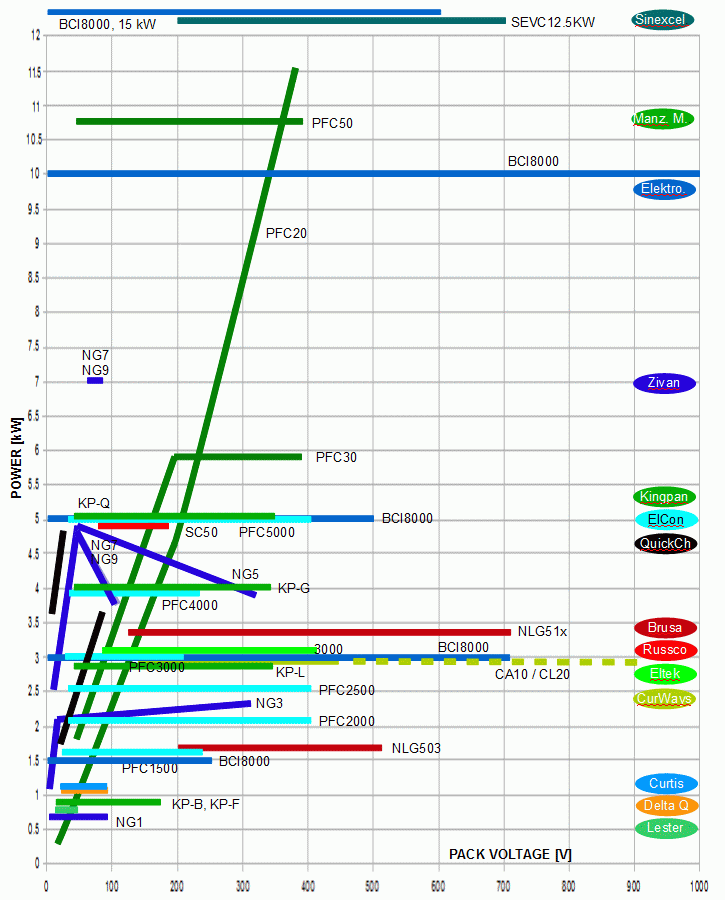

Maximum power (at ideal AC line voltage) vs. output DC voltage
| Manufacturer
| Location
| Distributors
| Model
| Peak
power
[kW]
| Input [Vac]
| Output [Vdc]
| HF (5)
| CAN
| Parall. (1)
| Series (2)
| Lithiumate
compatible (4)
|
| Wire
| CAN
|
ATIB Elettronica
∝
| Italy
| -
| HFY
| 0.96
| 230
| 12~24
| ✓
|
| ✓
| ✕
| ✓
|
|
| HFX
| 1
| 12,24,36,48
|
| HFZ
| 2
| 24,36,48
|
| HFK
| 3.3
| 12~96
|
| HFT
| 8.7
| 400 3φ
| 24~80
|
| HFTD
| 14
| 48,80
|
| HTU
| 10.2
| 400,480 3φ
| 24~80
|
| Serie 2
| ≤26
| 230 1φ, 400 3φ
| 12~96
|
|
| Serie 3/5
| ≤40
| 230 1φ, 230 3φ, 400 3φ
| 12~120
|
| Fast Series
| ≤40
| 230 1φ, 230 3φ, 400 3φ
| 12~120
|
Bassi
∝
| Canada
| Sevcon
| MVX
| 0.5~3.6
| 100~240~480
| 12~48
| ✓
| ✓
| ✓
| ✕
| ✓
|
|
| MVC
| 3
| 120~480
| 0~130
| ✓
| ✕
|
| MVD
| 50
| 380, 3 φ
| 2~96
| ✓
| ✕
|
Current Ways
∝
| USA
|
| BC series
| 3
| 90~243
| 48~96
60~96
72~112
112~225
225~450
(2)
| ✓
| ✓
| 20 ea ➜ 60 kW
| ✓
| ✓
| ✓Direct
|
| 6.6
| 225~450 (2)
| 20 ea ➜ 132 kW
|
Curtis
∝
| US
| -
| 1621
| 1.2
| 85~265
| 24~96
| ✓
|
| ✓
|
| ✓
|
|
Chennic
∝
| China
| -
| JCWPC
| 1.1
| 95~265
| 12~144
| ✓
|
| ✓
|
| ✓
|
|
DeltaQ
∝
| Canada
| -
| QuiQ
| 1
| 85~265
| 24~96
| ✓
|
| ✓
|
| ✓
|
|
| 1.5
| 108~265
| 48, 72
| ✓
|
| ✓
|
| ✓
|
|
| ic650
| 0.65
| 85~270
| 24, 36, 48
| ✓
| ✓
| ✓
|
| ✓
| ✓ Direct
|
EDN Group
∝
| Italy
| -
| CBeasy T
| 3
| 230
400 3φ
| 24~80
|
|
| ✓
|
| ✓
|
|
| CoMPact VL VH
| 2
| 400 3φ
| 24~120
|
| ✓
|
| ✓
|
|
| CoMPact T
| 2.8
| 400 3φ
| 24~120
|
| ✓
|
| ✓
|
|
| CoMPact S
| 1
| 230
| 12~120
|
| ✓
|
| ✓
|
|
| CBeasy
| .1
| 230
| 12~48
|
| ✓
|
| ✓
|
|
| CoMPact E / B
| 1
| 230
| 12~120
|
| ✓
|
| ✓
|
|
ElCon
∝
| US / China
| -
| PFC1500
| 1.5
| 85~265
| 24~258
| ✓
| ✓
| ✓
|
| ✓
| ✓Direct
|
| PFC2000
| 2
| 36~408
| ✓
|
| ✓
| ✓Direct
|
| PFC2500
| 2.5
| 36~408
| ✓
|
| ✓
| ✓Direct
|
| PFC3000
| 3
| 24~217
| ✓
|
| ✓
| ✓Direct
|
| PFC4000
| 4
| 36~217
| ✓
|
| ✓
| ✓Direct
|
| PFC5000
| 5
| 36~417
| ✓
|
| ✓
| ✓Direct
|
| Manufacturer
| Location
| Distributors
| Model
| Peak
power
[kW]
| Input [Vac]
| Output [Vdc]
| HF (5)
| CAN
| Parall. (1)
| Series (2)
| Lithiumate
compatible (4)
|
| Wire
| CAN
|
Iota
∝
| USA
| -
| DSL series
| 0.18~1.1
| 108~132
| 13.4, 27.2 or 54.4
| ✓
|
| ✓
| ✕
| ✓
|
|
Jinan e-shine
∝
| China
| -
| ES-E
| 0.6
|
| 12~180
| ✓
|
| ✓
|
| ✓
|
|
| ES-B
| 0.9
| 12~180
| ✓
|
| ✓
|
|
| ES-F
| 0.9
| 12~180
| ✓
|
| ✓
|
|
| ES-C
| 1.2
| 12~360
| ✓
|
| ✓
|
|
| ES-D
| 1.5
| 12~360
| ✓
|
| ✓
|
|
| ES-K
| 2
| 12~360
| ✓
|
| ✓
|
|
| ES-G
| 4
| 12~360
| ✓
|
| ✓
|
|
Jon Elis
∝
| Lithuania
| -
| Fast charger 12
| 18
| 380, 3φ
| 144 (6)
|
|
| ✓
| ✓
| ✓
|
|
Kingpan Industrial Co
∝
| China
| -
| KP-F
| 0.9
|
| 14~175
| ✓
|
| ✓
|
| ✓
|
|
| KP-B
| 0.9
| 14~175
| ✓
|
| ✓
|
|
| KP-L
| 3
| 58~352
| ✓
|
| ✓
|
|
| KP-G
| 4
| 58~352
| ✓
|
| ✓
|
|
| KP-Q
| 5
| 58~352
| ✓
|
| ✓
|
|
Lester
∝
| USA
| -
| -
| 0.6
| 90~264
| 24~48
|
|
| ✓
|
| ✓
|
|
Manzanita Micro
∝
| USA
| -
| PFC20
| 11.5
| 125~240 (3)
| 25~375
| ✓
|
| ✕
| ✕
| ✓
|
|
| PFC30
| 5.8
| 25~400
| ✓
|
|
| PFC50
| 10.7
| 25~400
| ✓
|
|
Mean Well
∝
| China
| -
| PB series
| 0.03~1
| 90~264
| 12,24,48
| ✓
|
| ✓
|
| ✓
|
|
| ESC/ESP series
| 0.12~0.24
|
Micropower Group
∝
| Sweden
| -
| Lion 30
| 0.9~2.8
| 220~240
| 24,48
| ✓
| ✓
| ✓
|
| ✓
|
|
| Lion 32
| 2.4~2.8
| 220~240
| 24,36,48
|
| Lion 50
| 3.1~3.8
| 220~240, 380~480 3φ
| 24,36,48
|
| Lion 80
| 4.8~6.4
| 380~480 3φ
| 36,48,80
|
| Lion 100
| 2.8~8.0
| 208~240, 380~480 3φ
| 24,36,48,80
|
| Lion 130
| 7.2~10.8
| 380~480 3φ
| 24,36,48,80, 120
|
| Lion 200
| 7.2~16
| 200~240,380~480 3φ
| 24,36,48,80
|
| Lion 260
| 21
| 380~480 3φ
| 80,120
|
Pironex GmbH
∝
| Germany
| -
| piCan-EB-Charger
| 0.6
| 90~264
| 14~56
| ✓
| ✓
| ✕
| ✕
| ✓
|
|
Quick Charge
∝
| USA
| -
| SCSX9640
| 3.8
| 220
| 96
|
|
| ✓
|
| ✓
|
|
| QSETX
| 4.8
| 48
| ✓
|
| ✓
|
|
| SCO
| 1.2
| 120
| 12~120
| ✓
|
| ✓
|
|
Sinexcel
∝
| China
| -
| SEVC12.5KW
| 12.5
| 380
| 200~700
| ✓
|
| 8 ea ➜ 100 kW
|
| ✓
|
|
SPE Electronica industriale
∝
| Italy
| -
| Various
| 0.1~16
| 100~240
| 24~96
| ✓
|
|
|
| ✓
|
|
Zivan
∝
| Italy
| ElCon
Zapi
| NG1
| 0.6
| 115
| 12~96
| ✓
|
| ✓
|
| ✓
|
|
| NG3
| 2.2
| 115 or 230
| 12~312
| ✓
|
| ✓
|
|
| NG5
| 4.8
| 208 or 230
440/480
| 24~312
| ✓
|
| ✓
|
|
| NG6
| 0.6
| 230
| 12~80
| ✓
|
| ✓
|
|
| NG7
| 7
| 208 or 230
440/480 3φ
| 24~312
| ✓
|
| ✓
|
|
| NG9
| 7
| 440/480 3φ
| 24~120
| ✓
| ✓
|
| ✓
|
|
| NGTOP
| 4.8~10
| 400 3φ
| 24~96
|
| ✓
|
| ✓
|
|
| Manufacturer
| Location
| Distributors
| Model
| Peak
power
[kW]
| Input [Vac]
| Output [Vdc]
| HF (5)
| CAN
| Parall. (1)
| Series (2)
| Lithiumate
compatible (4)
|
| Wire
| CAN
|
- Multiple units can be paralleled, for higher power
- "✓" means that chargers can be connected in parallel, though will not work in synch with each other past the CC phase
- "x ea ➜ y kW" means that chargers work in consort through a communication link, to share the current and operate in unison
- "✕" means that chargers may not be paralleled. either because they are not isolated, or because their servo loops can become unstable if the battery pack impedance is not low enough
- Two units can be placed in series for increased output voltage, with no need for center tap connection to the battery
- Non-isolated
- CAN compatibility:
- Direct: plug-in compatible
- VCU: the motor controller requires a Vehicle Control Unit to interface to other components on CAN bus
- HF = High Frequency switching (small transformer)
- Other voltages available by special order
